Description
Model: TL-SG1005P
TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
Overview
- 5Ć 10/100/1000 Mbps RJ45 ports

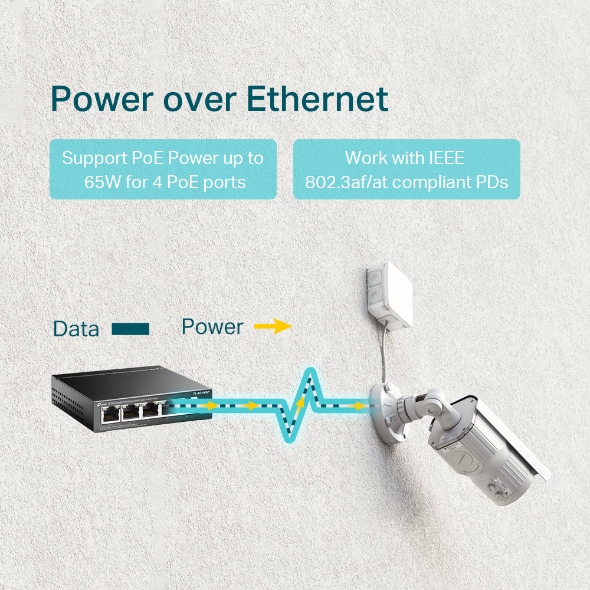

- With four PoE+ ports, transfers data and power on one single cable
- WorksĀ with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port

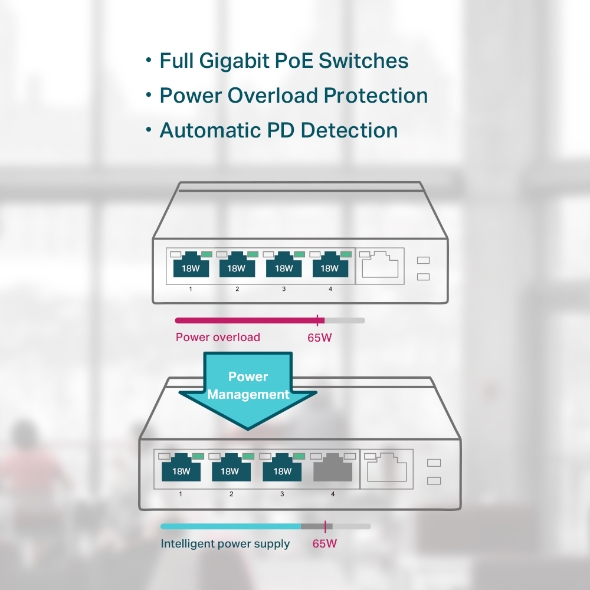

- Supports PoE Power up to 65 W for all PoE ports

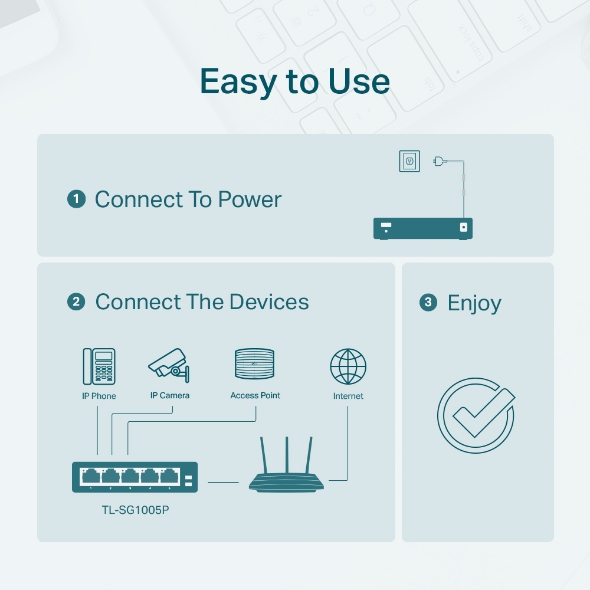

- Requires no configuration and installation
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | ā¢ 5Ć 10/100/1000Mbps RJ45 Ports ā¢ AUTO Negotiation ā¢ AUTO MDI/MDIX |
| Network Media | ā¢ 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) ā¢ EIA/TIA-568 100Ī© STP (maximum 100m) ā¢ 100BASE-TX: UTP category 5, 5e cable (maximum 100m) ā¢ EIA/TIA-568 100Ī© STP (maximum 100m) ā¢ 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) ā¢ EIA/TIA-568 100Ī© STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 54 VDC / 1.3 A) |
| Packet Forwarding Rate | 7.44 Mpps |
| PoE Ports (RJ45) | ā¢ Standard: 802.3 af/at compliant ā¢ PoE Ports: Ports 1ā4 ā¢ Power Supply: 65 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 10 Gbps |
| Dimensions ( W x D x H ) | 3.9 Ć 3.9 Ć 1.0 in. (99 Ć 98 Ć 25 mm) |
| Max Power Consumption | ā¢ 4.3 W (without power device connected) ā¢ 74.2 W (with 65W power devices connected) |
| Max Heat Dissipation | ā¢ 14.6 BTU/h (no PD connected) ā¢ 253.2 BTU/h (with 65 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | ā¢ Compatible with IEEE 802.3af/at compliant power devices ā¢ MAC address auto-learning and auto-aging ā¢ IEEE 802.3x flow control ā¢ 802.1p/DSCP QoS ā¢ IGMP snooping |
| Transfer Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |

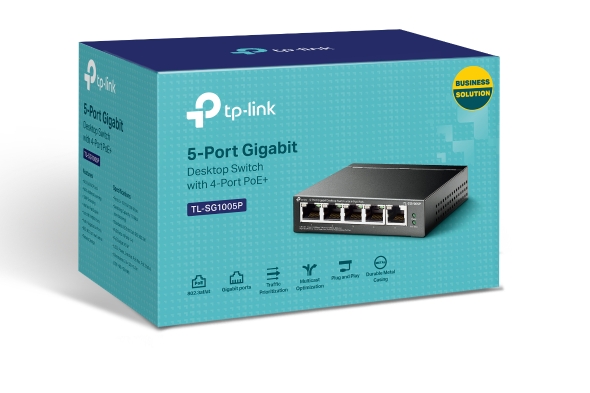

| Package Contents | ā¢ TL-SG1005P ā¢ Power Adapter ā¢ Installation Guide |
| Environment | ā¢ Operating Temperature: 0ā40 ā (32ā104 ā); ā¢ Storage Temperature: -40ā70 ā (-40ā158 ā) ā¢ Operating Humidity: 10ā90% RH non-condensing ā¢ Storage Humidity: 5ā90% RH non-condensing |
