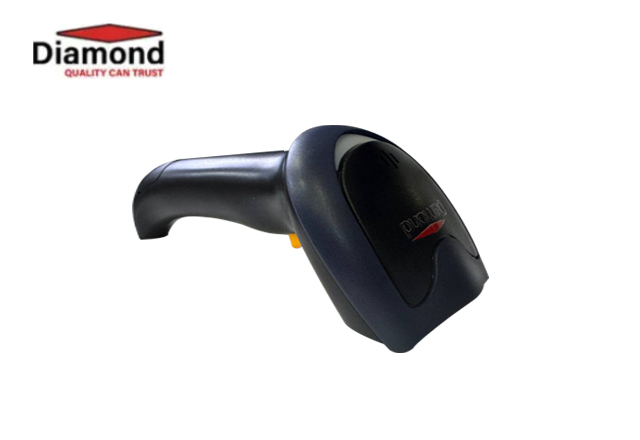

| PERFORMANCE |
| IMAGE SENSOR |
640*480 pixels |
| LIGHT SENSOR |
360nm-830nm WHITE LED |
| AIMING LIGHT SOURCE |
635nm RED LED |
| SYMBOLOGIES |
2D |
QR Code, PDF417, DataMatrix, Chinese Sensible Code, HANXIN Code |
| 1D |
Code 128, EAN-8, EAN-13, UPC-E, UPC-A, Code 39, Code 32, Trioptic 39 |
| Codebar, Code 93, ITF 25, Matrix 25, Industrial 25, Airline 25, Plessey, MSI, Code 11, GS1-Databar, Compsite |
| RESOLUTION |
|
≥4mil |
| DEPTH OF FIELD |
EAN13 (13mil) |
35mm-270mm |
| QR Code (10mil) |
20mm-100mm |
| PRINT CONTRAST RATIO |
|
≥ 20% |
| DECODING RATE |
30 scans/sec |
| AUTO-INDUCTION |
Optional |
| STAND |
Optional |
| CHANICAL / ELECTRICAL |
| INTERFACE |
USB HID-KBW, RS232 (Optional), VCOM (Optional) |
| WORKING VOLTAGE |
5V |
| CURRENT @ 5 VDC |
Operating |
240mA |
| Standby |
100mA |
| DEMENSIONS |
173 (L) x 68 (W) x 76 (H) mm |
| WEIGHT |
145g (No Stand and line) |
| ENVIRONMENTAL |
|
| OPERATING TEMPERATURE |
─ 10ºC ─ 60ºC |
| STORAGE TEMPERATURE |
─ 20ºC ─ 70ºC |
| HUMIDITY |
|
5% ~ 95% (non-condensing) |
| DATASHEET |
| DATASHEET |
V1.0 |
